HON MING industrial cooling towers are divided into two series, MKG (cross-flow type) and MRG (counter-flow type). The cooling water treatment capacity is 800m³/h -3000m³/h.
Type: MKG Series Cross Flow Type
Water Flow Rate: 800-3000 m³/h or customized
Material: FRP
Entering Water Temperature: 30 ℃ - 100℃
Fill: PVC or customized
This series of products adopts steel frame and FRP enclosure structure. Equipped with energy recovery type FRP air duct, low-resistance, high-efficiency, flame-retardant, and strong rain filler, high-efficiency fan, low-resistance and high-efficiency water collector. It has the advantages of high cooling efficiency, low energy consumption, corrosion resistance, low noise, simple structure and short installation period.
HonMing brand industrial series cooling towers are the industrial circulating water cooling equipment launched by HonMing Group by summarize the research and development experience in recent 20 years, absorb and master the advanced technology of cooling tower at home and abroad. The equipment is widely used in the circulating water system such as electric power, petroleum, chemical industry, chemical fertilizer and smelting.
Combined with customer requirements, we also provide high temperature type, sewage type and other products. According to the installation environment and the style of the building, you can choose square, rectangular, round or non-standard designs to adapt it. All components are manufactured by our factory. The quality and investment easy to control. It is a reliable cooling equipment.
HonMing Group will deeply understand the needs of customers when they buy cooling towers, and will provide detailed information and technical consulting services. Customers only need to provide the following information, we can select the appropriate tower type for customers, then according to customers needs to carry out electrical and automatic control design.

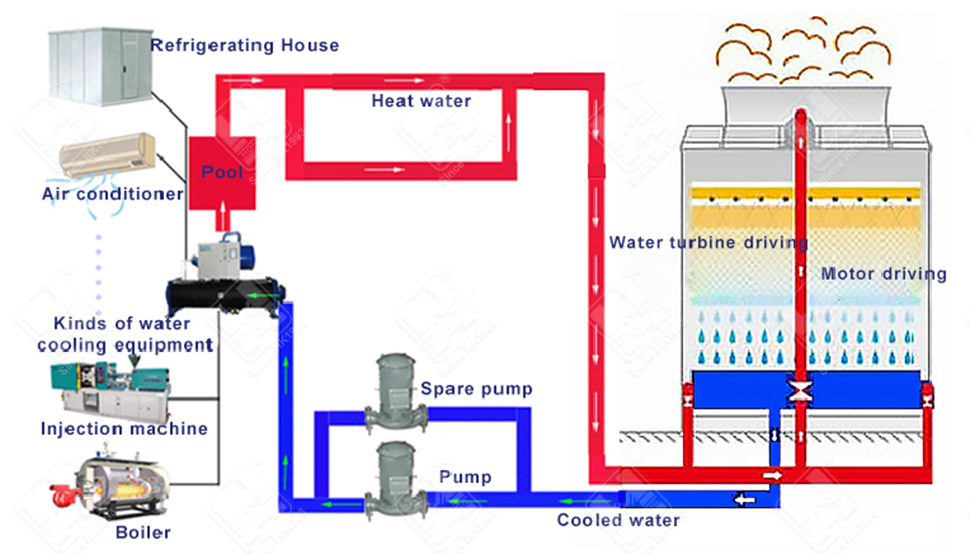

It is widely used in air conditioning system,frozen series,injection molding,plastic,leather, foam, power generation, food,textile,steam turbine, chemicals,packing industrial,aluminum processing, air compressors, industrial cooling water and other fields.
No.& Item | Cross flow industrial tower | No.& Item | Cross flow industrial tower | ||||
MKG-800 | MKG-1000 | MKG-800 | MKG-1000 | ||||
1 | Water flow rate | 800m³/h | 1000m³/h | 12 | Fan diameter | ∅4700mm | ∅5460mm |
2 | Water inlet temperature | 43℃ | 43℃ | 13 | Fan speed | 220r/min | 165r/min |
3 | Water outlet temperature | 33℃ | 33℃ | 14 | Fan installation angle | 12° | 18° |
4 | Wet bulb temperature | 28℃ | 28℃ | 15 | Motor model | Y255M-6 | Y255M-4 |
5 | Dry bulb temperature | 31.5℃ | 31.5℃ | 16 | Power | 30Kw | 45Kw |
6 | Atmospheric pressure | 100400Pa | 100400Pa | 17 | Motor speed | 960r/min | 1450r/min |
7 | Approximation value | 5℃ | 5℃ | 18 | Dry weight of tower | 16650Kg | 20880Kg |
8 | Temperature difference | 10℃ | 10℃ | 19 | Wet weight of tower | 25470Kg | 32220Kg |
9 | Fan weight | 550Kg | 990Kg | 20 | Standard point noise | 70.0dB(A) | 72.0dB(A) |
10 | Motor weight | 302Kg | 333Kg | 21 | Number of blades | 4 | 6 |
11 | Air flow rate | 600Km³/h | 900Km³/h | 22 | Total pressure | 128.8Pa | 132.3Pa |
※Specifications are subject to change without notice.
*Made of steel and round pipe and square tube etc.
*Anti-corrosion treatment
*Good stability
*Resistant to magnitude 8 typhoon and magnitude 7 earthquake
*FRP material with rebar protection
*Reasonable aerodynamic performance design
*High strength and efficiency
*Avoid produce 3-dimensional space overflow air mass
*Enhance thermal performance
*Using unsaturated polyester resin FRP structure
*Light weigh and high strong anti-corrosion
*Counter flow use pipe water distribution
*Using import advanced water nozzle.
*Round nozzle with adjustable spray area
*Cross flow use pool water distribution
*Brand new PVC plastic:twill design&honeycomb structure
*Higher heat exchanging efficiency
* Supply other filler according to require.
*Changeable pattern steel plate is FRP
*No ponding and risk
*Anti-corrosion&Durable life
*Famous brand fan motor
*Working in wet and hot area
*Single speed or muti-speed low noise motor
*Using advanced wave water collector
*Water collecting efficiency>99.9%
