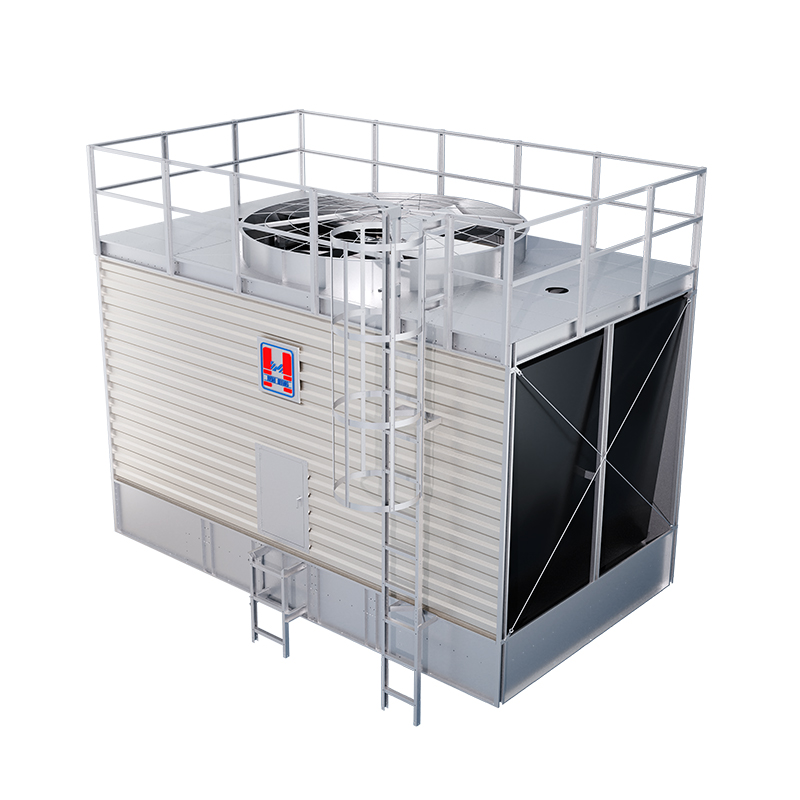

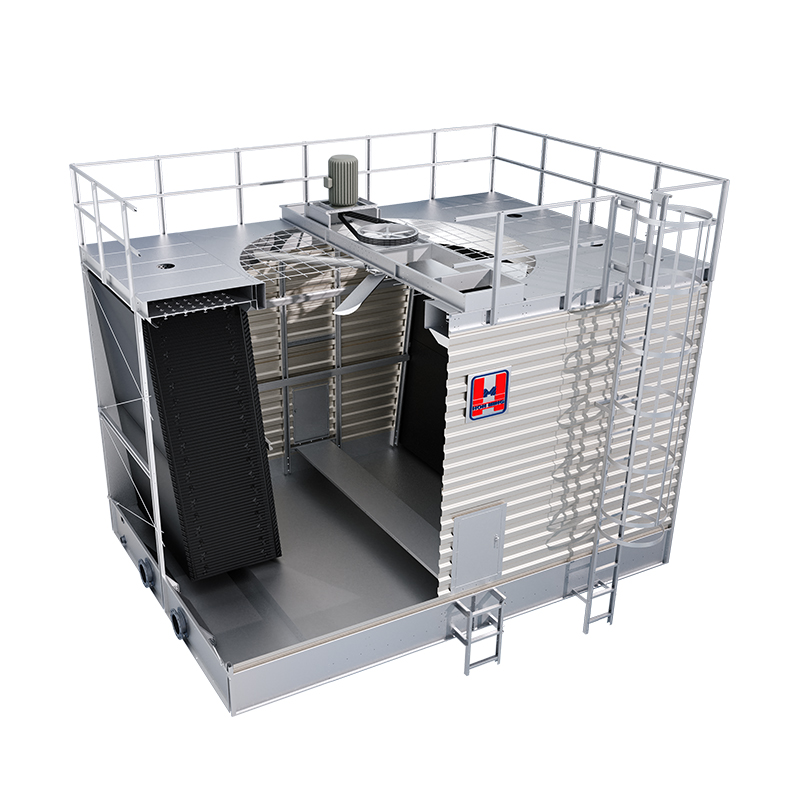

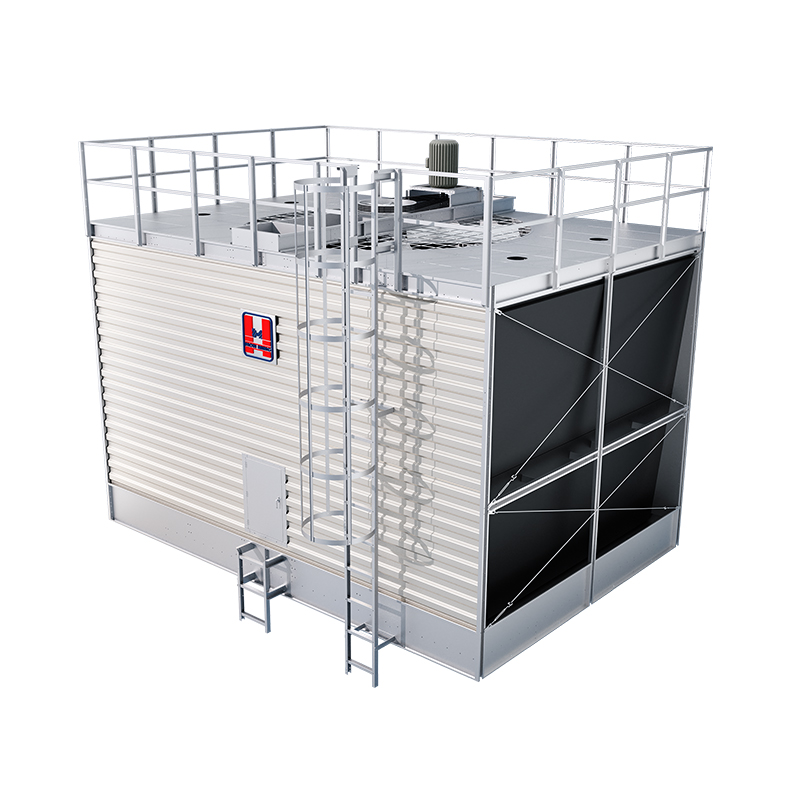

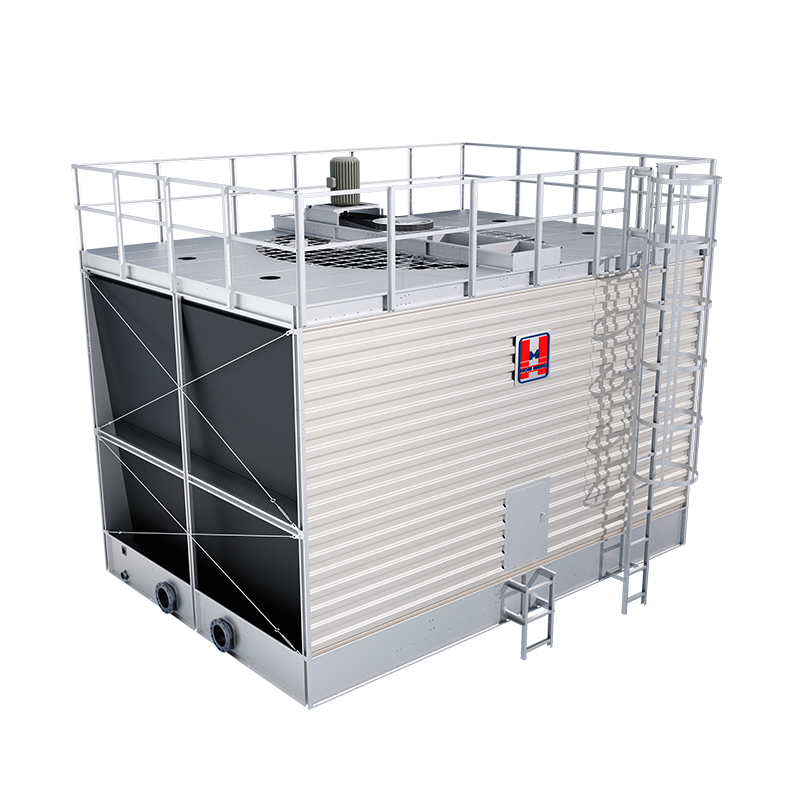

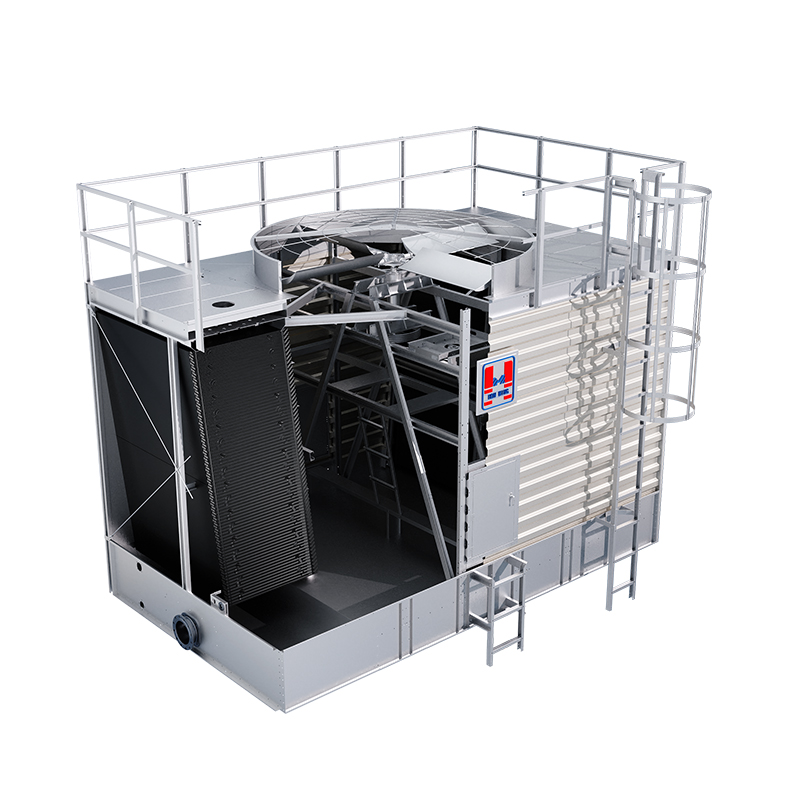

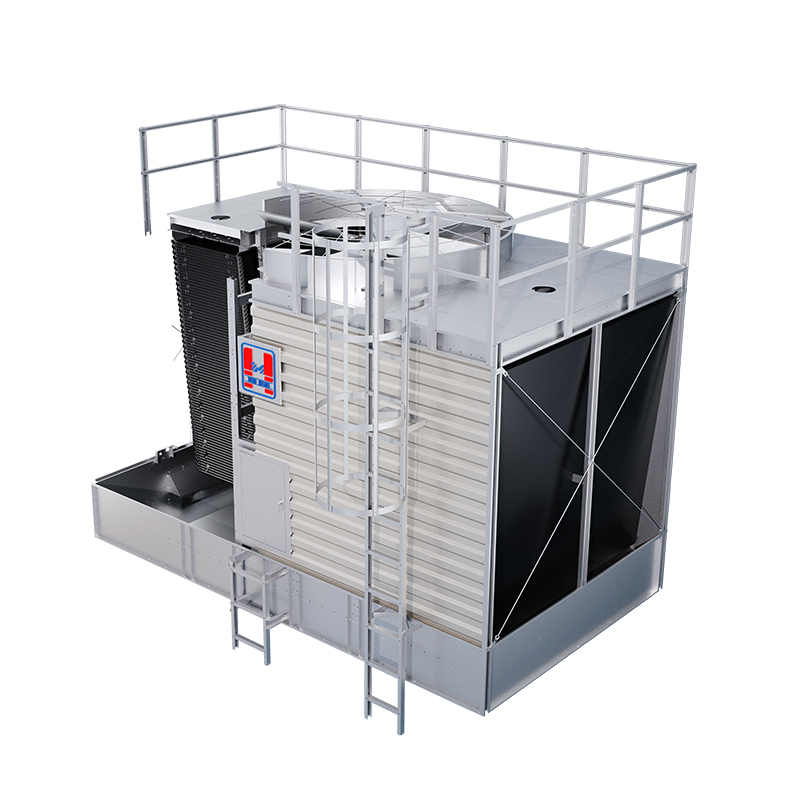

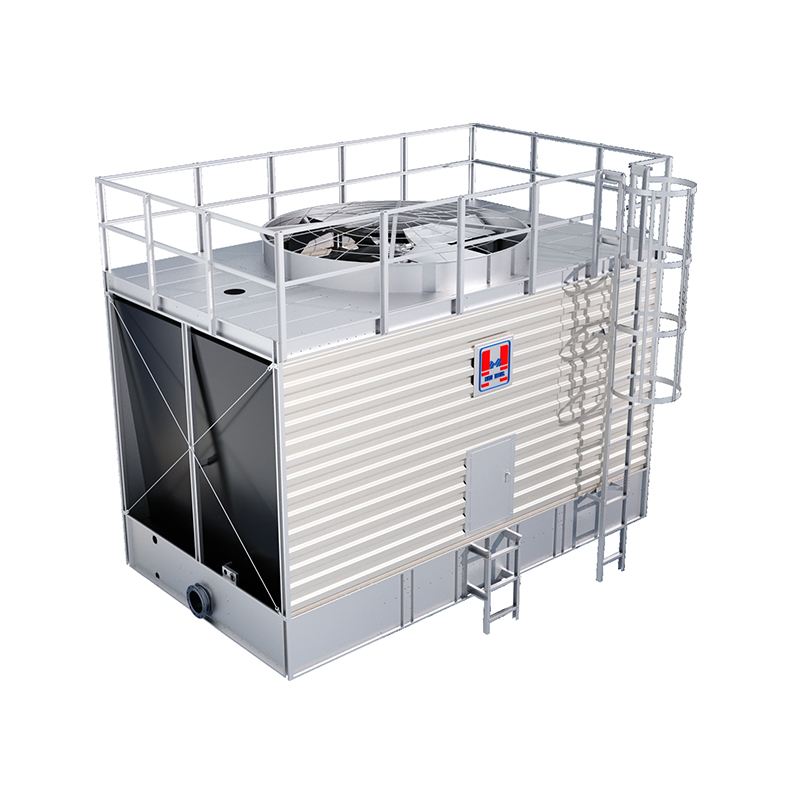

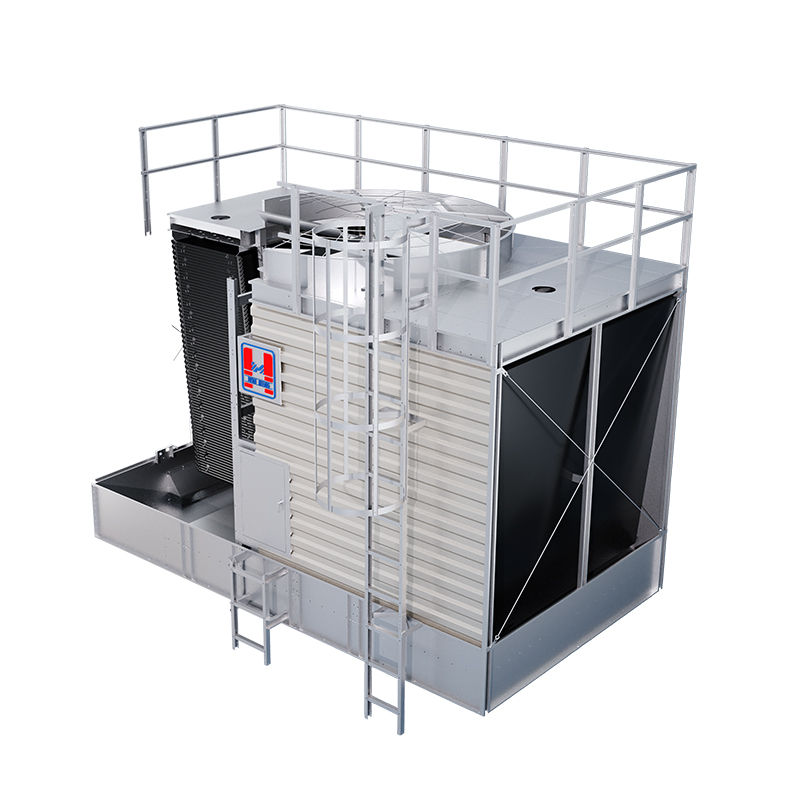

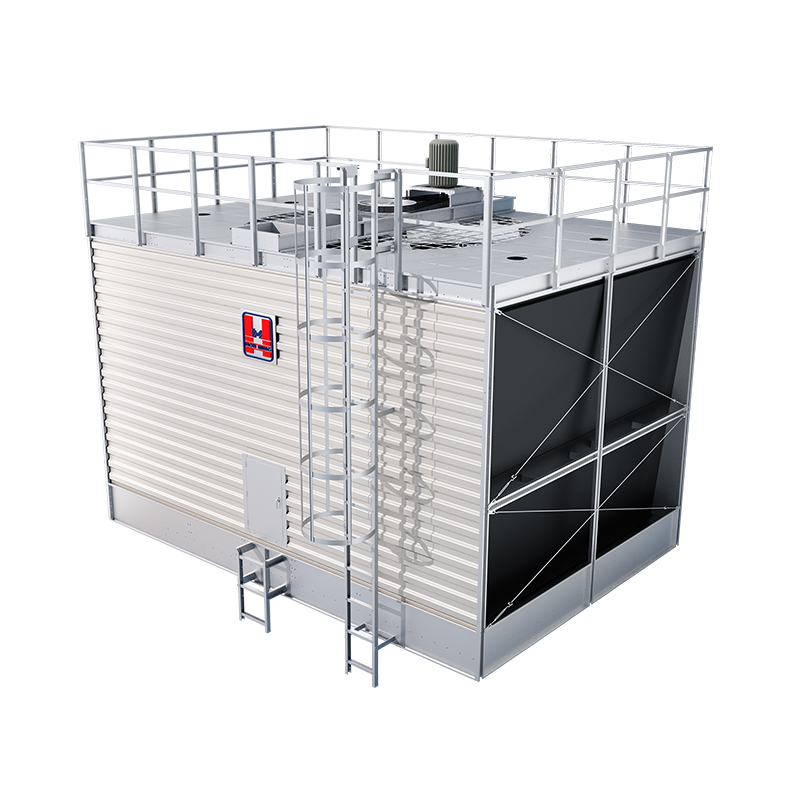

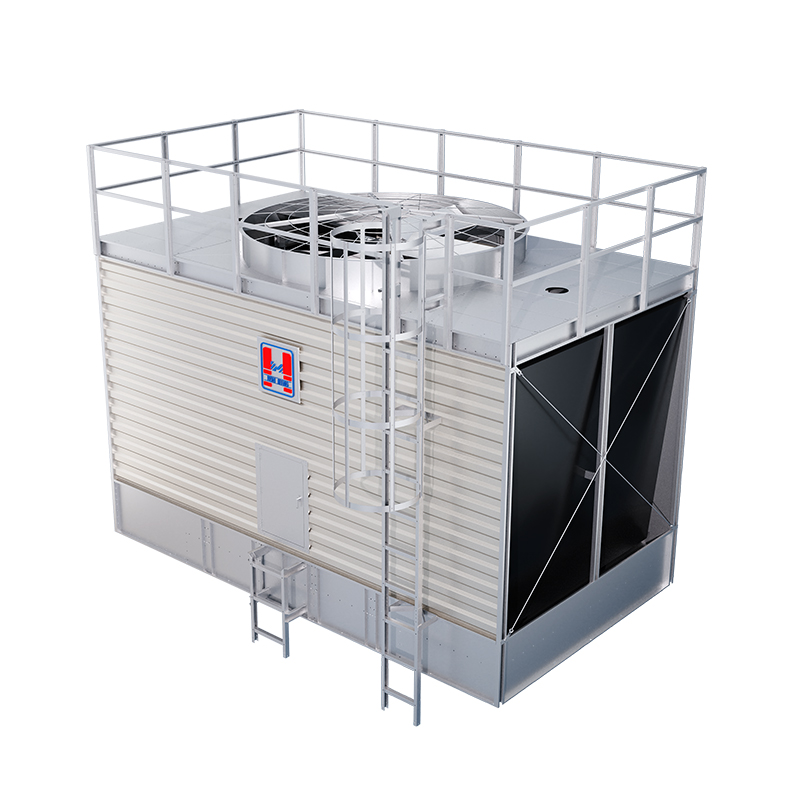

MK-E FRP/SS304/Zinc/Mg Plate Open Square Cross Flow Cooling Tower

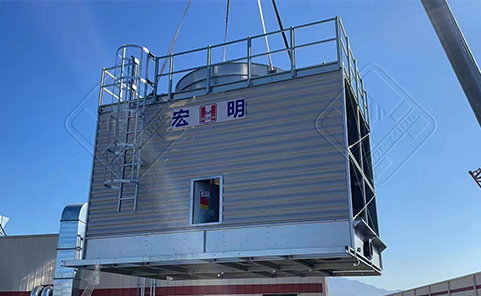

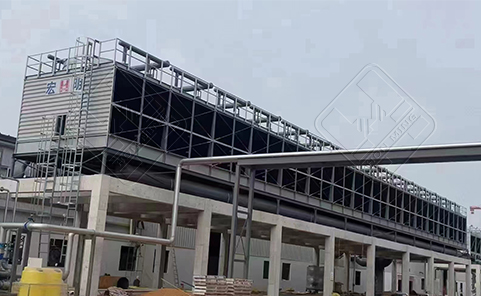

MKE series cooling tower adopts steel-frame structure; it can be assembled on-site in the form of single or multiple units flexibly according to the environment and customer requirements.

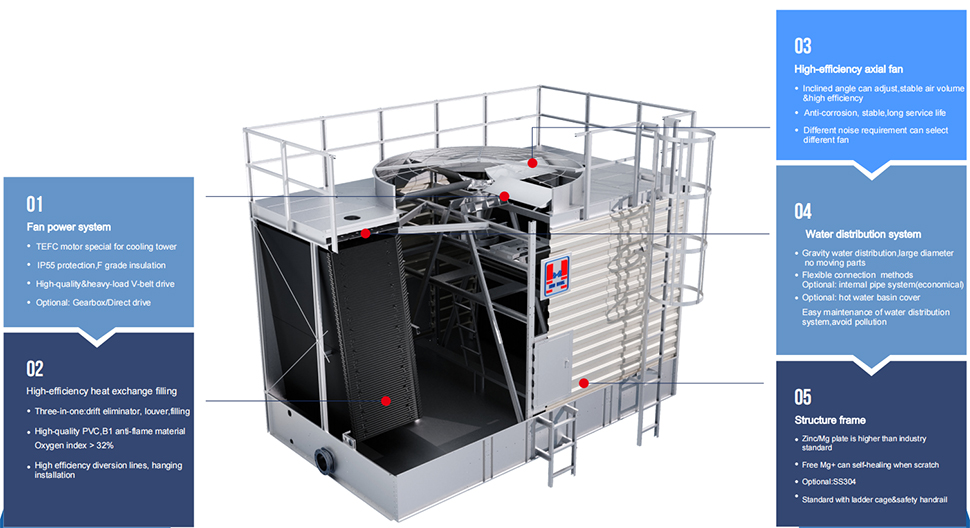

HON MING MKE series is designed for the natural environment in China. All indicators meet the national standards, which can reduce the energy consumption of the supporting unit and ensure the efficient operation of the unit. Optimize the overall design of the cooling tower’s heat dissipation system, air guide device, water collecting device and water distribution system. It has the characteristics of stable structure, high heat exchange efficiency, low noise, environmental protection and energy saving, convenient maintenance, and long comprehensive service life.

HON MING also can manufacture all kinds of cooling tower, and supply numerous of design and installed capacity to meet the needs of different client special cooling tower requirements.

MKE series cooling tower is more suitable for the application of circulating water heat dissipation, including the natural cooling of air conditioning, refrigeration, heat storage system and the cooling of water in the condenser of these systems and it is widely used in the industrial and manufacturing processes to disperse waste heat.

• Inlet temperature 37°C, outlet 32°C; temperature difference 5°C;
• Wet bulb temperature 28°C, and atmospheric pressure 99400Pa.
• Specifications and dimensions are subject to change without notice.

※Please contact us for more technical parameters.

• Working fluid (water, oil or other liquid) flowing inside of the coils, which is en-wrapped by spray water on the surrounding. The heat water is transferred by coil and become the saturated vapor when meet the water and air.

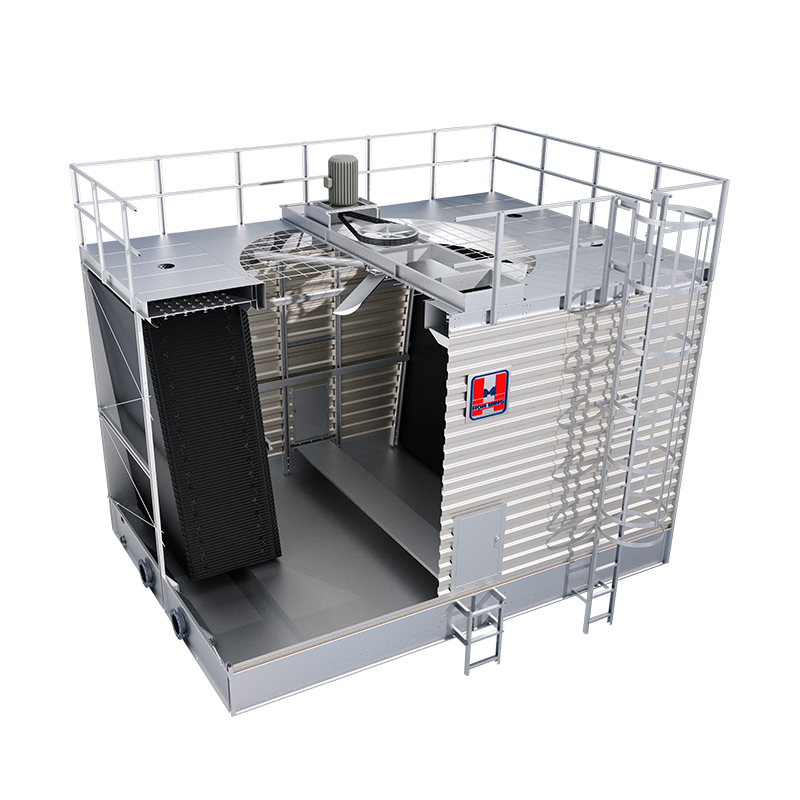

• The top fan can exhaust the heat out of the tower, abandon water is collected by the bottom tank and circulates continuously. The spray water is cooled down via PVC radiation fin when circulation, and flow is the same direction with the fresh wind. The coil mainly takes sensible heat travel style.
• This style advantage is to avoid scale formation on coil outside. And this cooling tower will especially handle high temperature fluid (e.g. 60°C) or the fluid need big temperature difference (e.g. 60°C to 32°C).

• If the cooling tower is a natural inflow pool, the customer needs to increase the outlet diameter when placing an order and then we can provide the sales representative with the relevant shape and layout when the water collecting tank is not needed.
• The cooling tower in the foundation dimension drawing will support the vertical weight of the inlet pipe shown only in the tower plane. All external pipeline loads, including the dead weight of riser and horizontal pipe, thrust and lateral load, must be supported independently. All pipes, supports and design are in the charge of others.
• Paying attention to fire prevention strictly not allowed the gas welding and electric welding on the top of cooling tower.
• The cooling tower should be installed in a well ventilated place, and the air inlet of the cooling tower should keep a certain distance from the building to ensure that fresh air enters the tower, so as to avoid the back-flow of hot and humid air discharged from the cooling tower affecting its thermal performance, The minimum allowable distance between the air inlet surface of the cooling tower and the building is related to the tower type and the number of assembled units. Please contact us for further details.
• The cooling tower should not be installed in the place with hot and humid air and dust as far as possible and it should be installed in an open field, so as to avoid noise expansion caused by sound reflection.
• The construction foundation and the edge of the foundation should reserve a safety channel of ≥ 1000mm. If no safety channel is reserved, the protective net should be reserved as the basic safety guarantee for maintenance personnel.
• The cooling tower should be far away from the fire during installation and use, When connecting the cooling water pipe, be careful to prevent the fire of welding.
