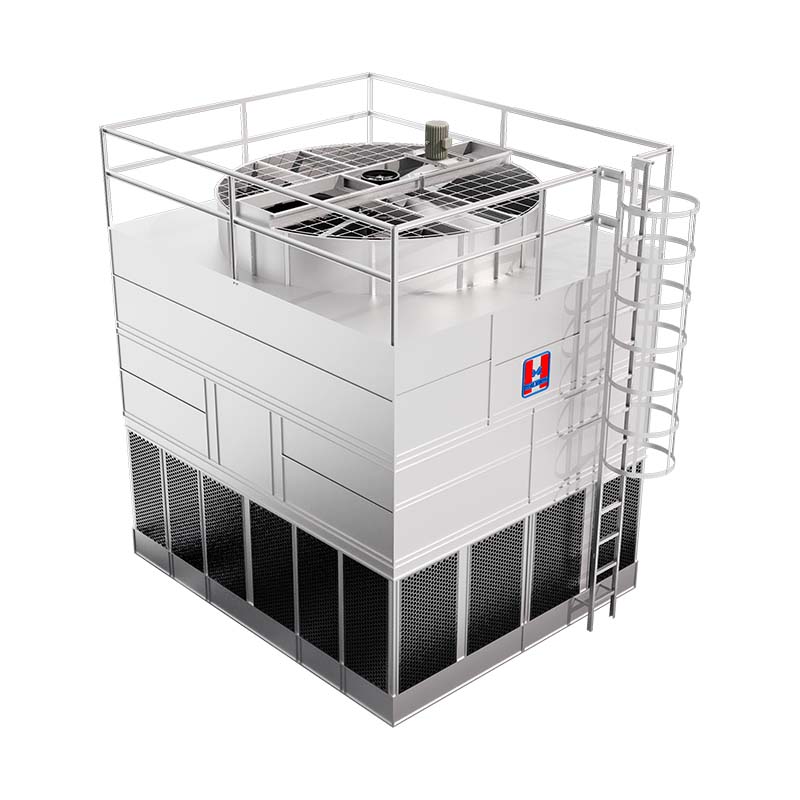

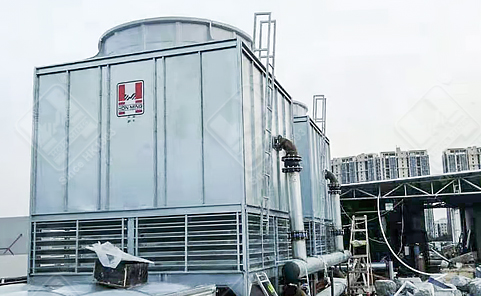

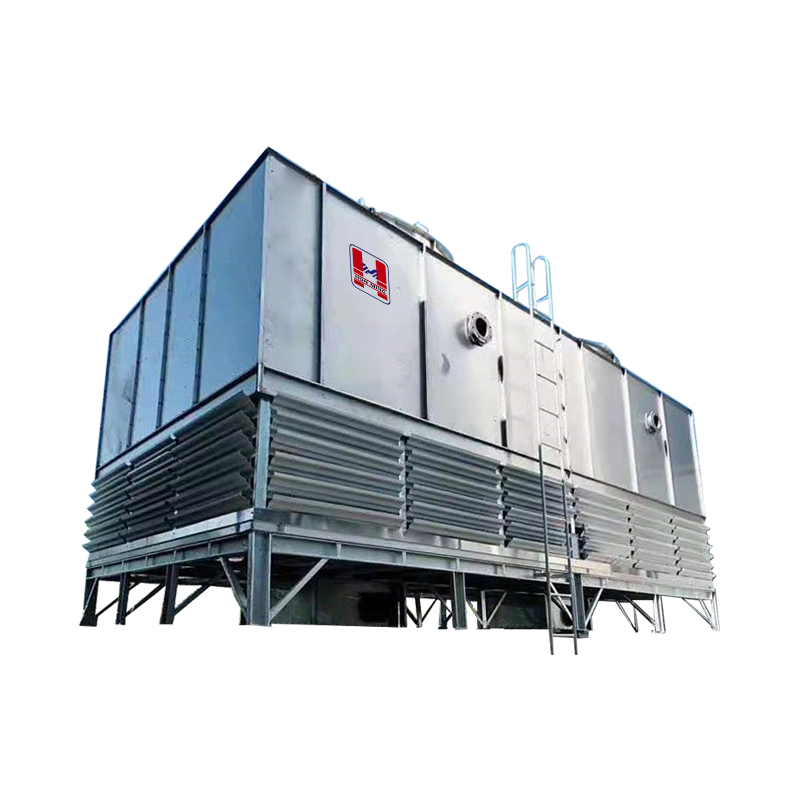

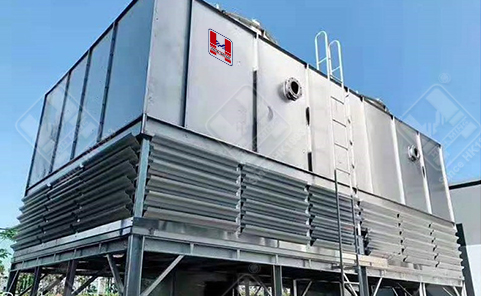

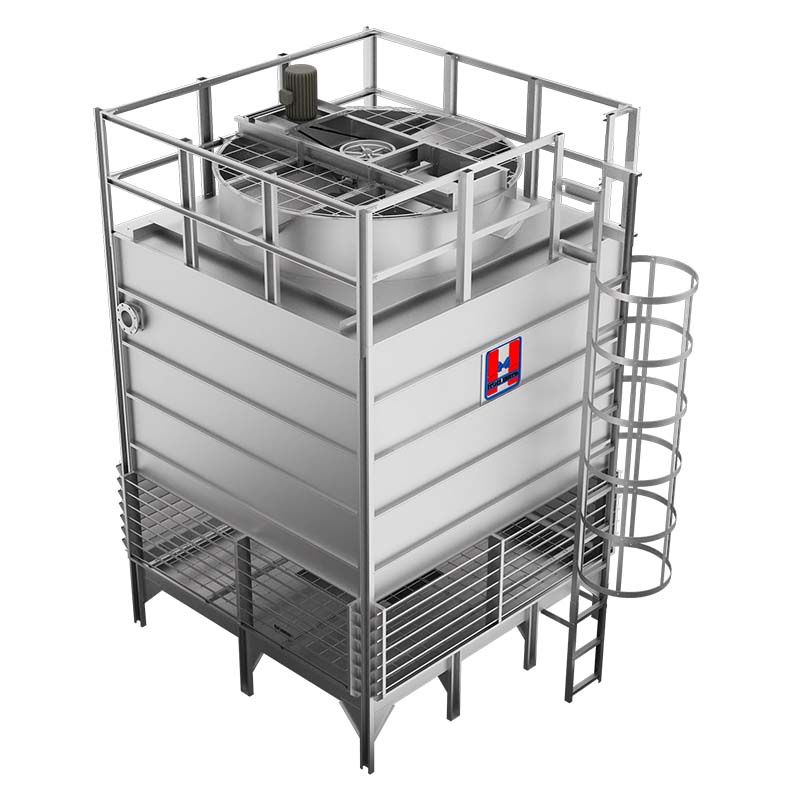

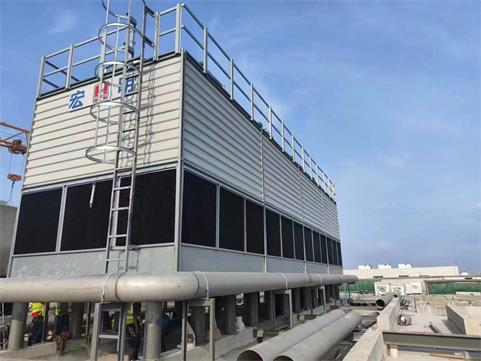

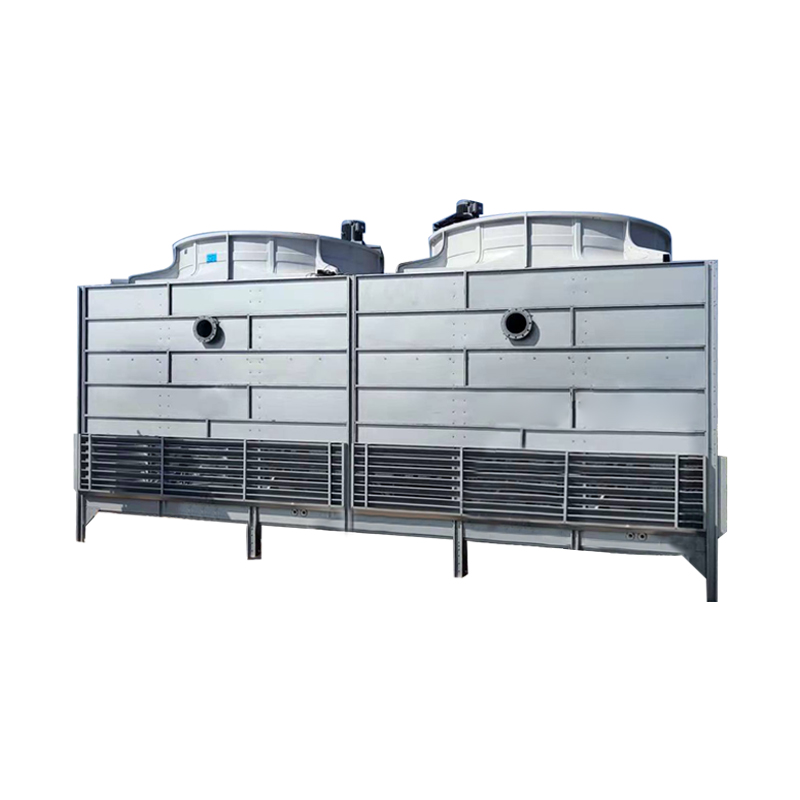

MR-E FRP/SS304/Zinc/Mg Plate Square Counter Flow Cooling Tower

MR-E series are open square counter flow cooling towers. The casing is FRP/SS304/Zinc/Mg Plate. The frame is made of high-quality Zinc/Mg plate or SS304 stainless steel. Compared with traditional products with non-degradable materials, which effectively protects environmental health and ecological balance. Modular standard design, professional CNC machinery and equipment to ensure product quality.

According to the use requirements, it is divided into air-conditioning, industrial, high-temperature, and sewage type. According to the requirements of the site environment, you can choose the ordinary type, noise reduction type, ultra-low noise type, and ultra-quiet type. The water treatment capacity is 100m3/h~1308m3/h, which can meet the requirements of various hosts, and there must be one that can meet your requirements.

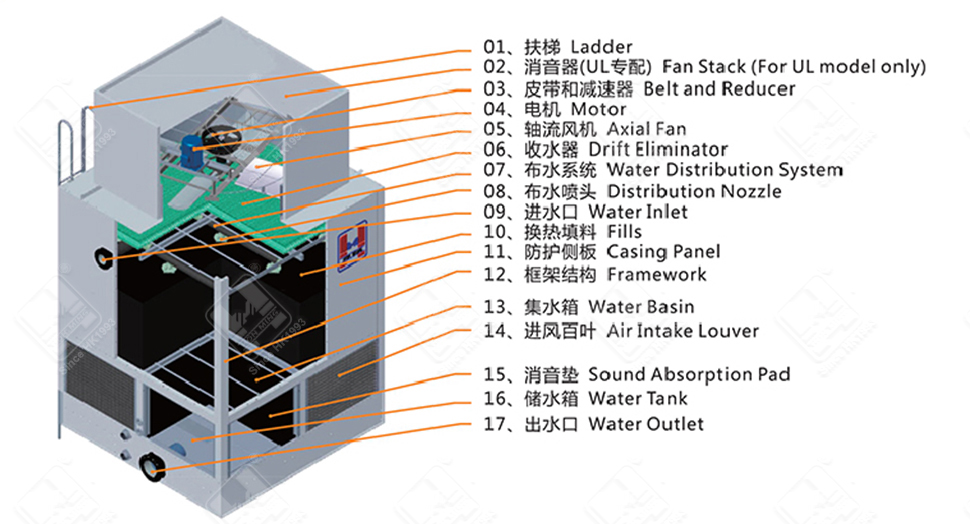

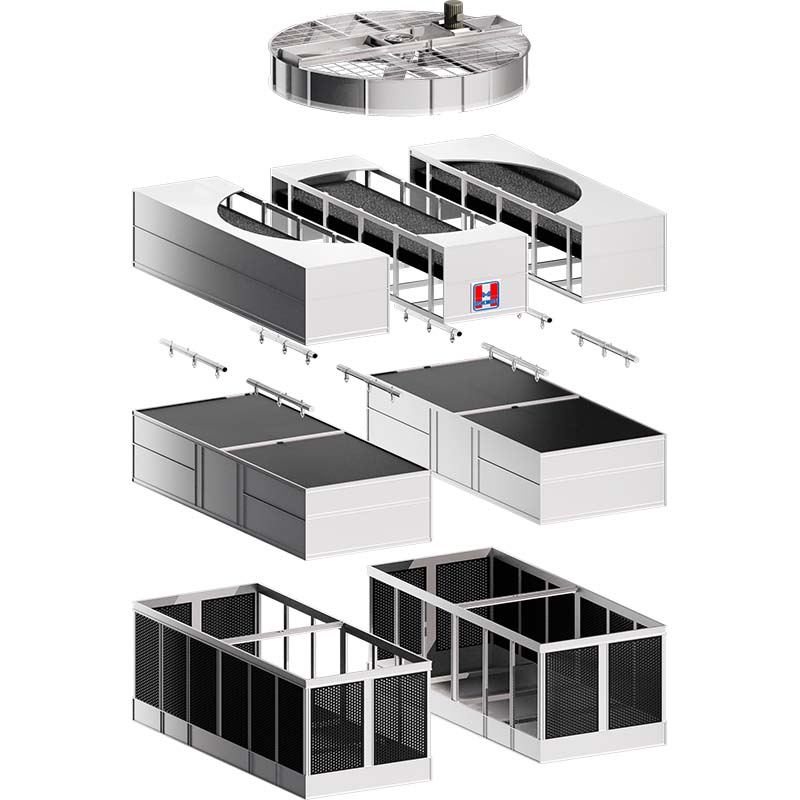

01

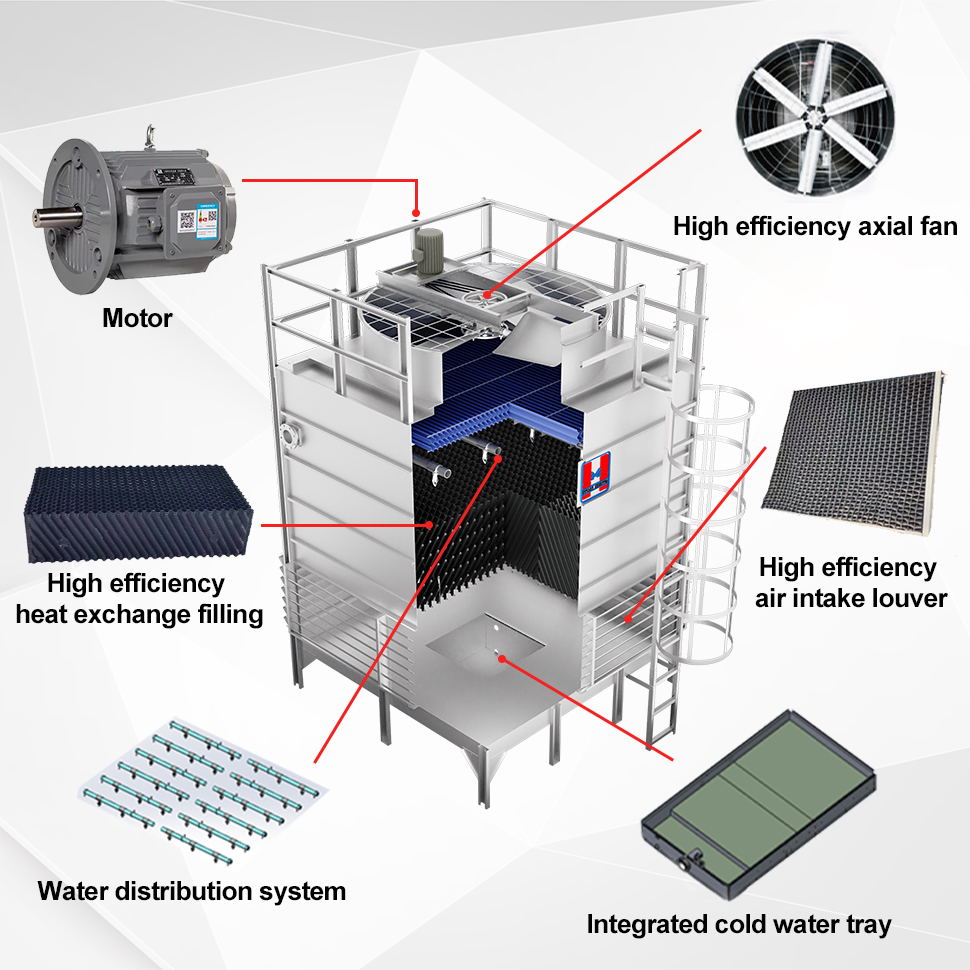

• High efficiency axial fan

Large air volume, large width blade,

high wind speed, silent operation

Anti-corrosion, superior stability, long

service life

02

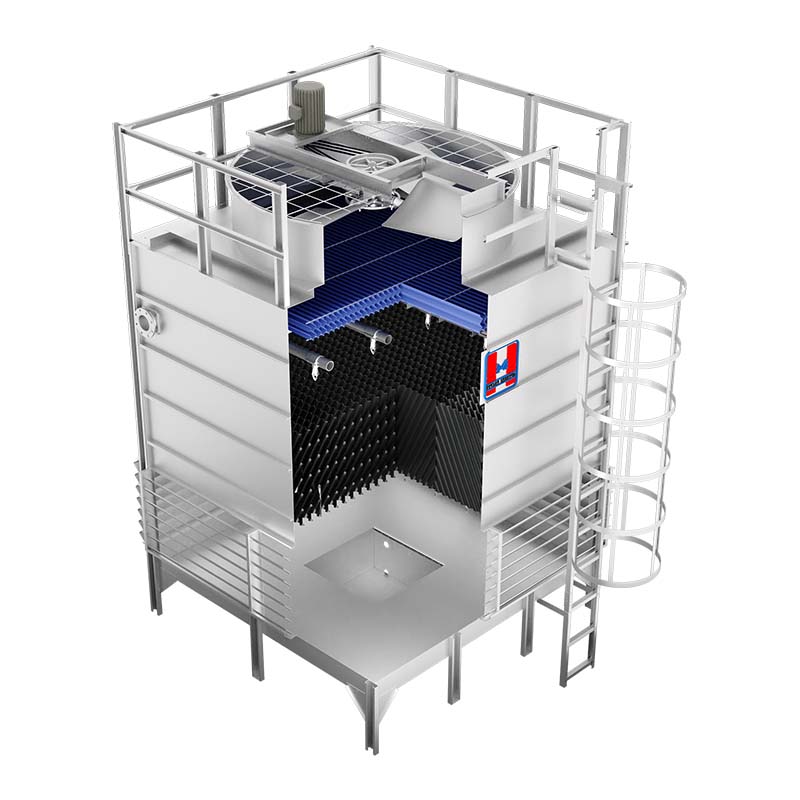

• High efficiency heat exchange filling

Three-in-one:drift eliminator, louver, filling

High-quality PVC, B1 anti-flame material

High efficiency diversion lines, hanging

installation

03

• High efficiency air intake louver

Effectively reduce water droplets splashing out of

the tower and solve the splashing water problem

Avoid sunlight directly reach the internal of the

tower, preventing algae growth

Small air resistance,reduce fan power and tower

operating costs

04

• Motor, transmission

Special TEFC motor for cooling tower

Protection level: IP55, insulation level: F

Optional: Anti-vibration alarm device/famous

brand motor

05

• Water distribution system

Inner rotating square spray nozzle,

large diameter, not easy block with

even water spray

Flexible installation and connection

methods, can rotate install angle due

to the site condition.

06

• Structure frame

Zinc/Mg plate is higher than industry standard

Free Mg+ can self-healing when scratch

Optional: SS304

Standard with ladder cage＆safety handrail

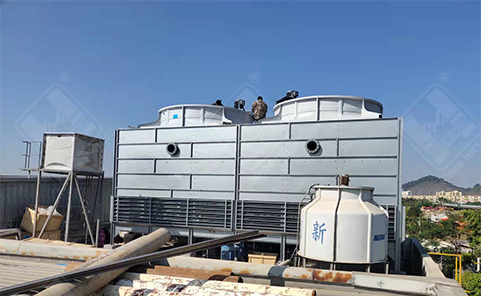

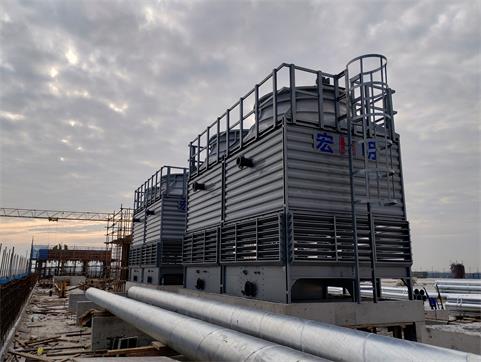

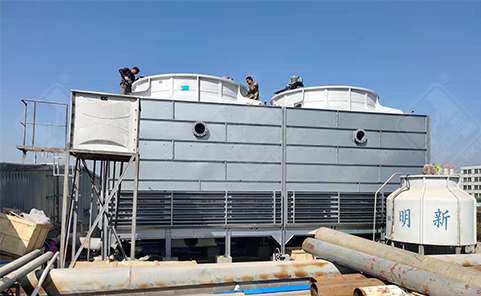

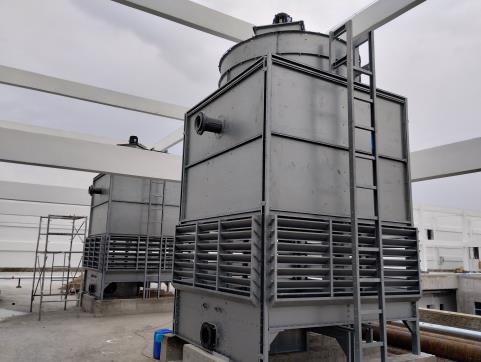

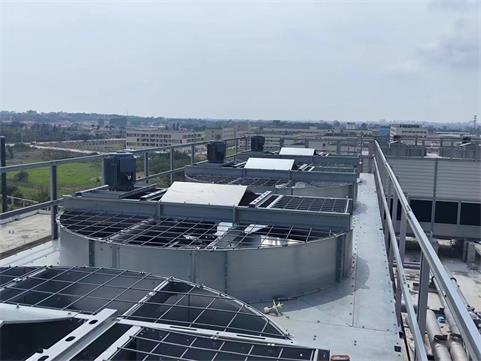

MR-E series cooling tower is more suitable for the application of circulating water heat dissipation, including the natural cooling of air conditioning, refrigeration, heat storage system and the cooling of water in the condenser of these systems. And it is widely used in the industrial and manufacturing processes to disperse waste heat.

• Inlet temperature 37°C, outlet 32°C; temperature difference 5°C;
• Wet bulb temperature 28°C, and atmospheric pressure 99400Pa.
• Specifications and dimensions are subject to change without notice.

※Specifications are subject to change without notice.

• Working fluid (water, oil or other liquid) flowing inside of the coils, which is en-wrapped by spray water on the outside. The heat water is transferred by coil and become the saturated vapor when meet the water and air.
• The top fan can exhaust the heat out of the tower. And water is collected by the bottom tank and circulates continuously. The spray water is cooled down via PVC radiation fin when circulation, and flow is the same direction with the fresh wind. The coil mainly takes sensible heat travel style.
• This style advantage is avoid scale formation on coil outside. And this cooling tower will especially handle high temperature fluid (e.g. 60°C) or the fluid need big temperature difference (e.g. 60°C to 32°C).

• If the cooling tower is a natural inflow pool, the customer needs to increase the outlet diameter when ordering, and can also provide the sales representative with the relevant shape and layout when the water collecting tank is not needed.
• The cooling tower in the foundation dimension drawing will support the vertical weight of the inlet pipe shown only in the tower plane. All external pipeline loads, including the dead weight of riser and horizontal pipe, thrust and lateral load, must be supported independently. All pipes, supports and design are in the charge of others.
• Gas welding and electric welding are not allowed in the top of cooling tower. Pay attention to fire prevention.
• The cooling tower should be installed in a well ventilated place, and the air inlet of the cooling tower should keep a certain distance from the building to ensure that fresh air enters the tower, so as to avoid the backflow of hot and humid air discharged from the cooling tower affecting its thermal performance; The minimum allowable distance between the air inlet surface of the cooling tower and the building is related to the tower type and the number of assembled units. Please contact us for details.
• The cooling tower should not be installed in the place with hot and humid air and dust as far as possible; And it should be installed in an open field, so as to avoid noise expansion caused by sound reflection.
• The construction foundation and the edge of the foundation should reserve a safety channel of ≥ 1000mm. If no safety channel is reserved, the protective net should be reserved as the basic safety guarantee for maintenance personnel.
• The cooling tower should be far away from the fire during installation and use; When connecting the cooling water pipe, be careful to prevent the fire of welding.
