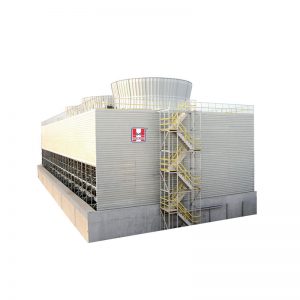

Reinforced Concrete Frame Industrial Cooling Tower

HonMing brand industrial series cooling towers are the industrial circulating water cooling equipment launched by HonMing Group by summarize the research and development experience in recent 20 years, absorb and master the advanced technology of cooling tower at home and abroad. The equipment is widely used in the circulating water system such as electric power, petroleum, chemical industry, chemical fertilizer and smelting.

Combined with customer requirements, we also provide high temperature type, sewage type and other products. According to the installation environment and the style of the building, you can choose square, rectangular, round or non-standard designs to adapt it. All components are manufactured by our factory. The quality and investment easy to control. It is a reliable cooling equipment.

HonMing Group will deeply understand the needs of customers when they buy cooling towers, and will provide detailed information and technical consulting services. Customers only need to provide the following information, we can select the appropriate tower type for customers, then according to customers needs to carry out electrical and automatic control design.

It has the advantages of high cooling efficiency, low energy consumption, corrosion resistance, low noise, simple structure and short installation period.

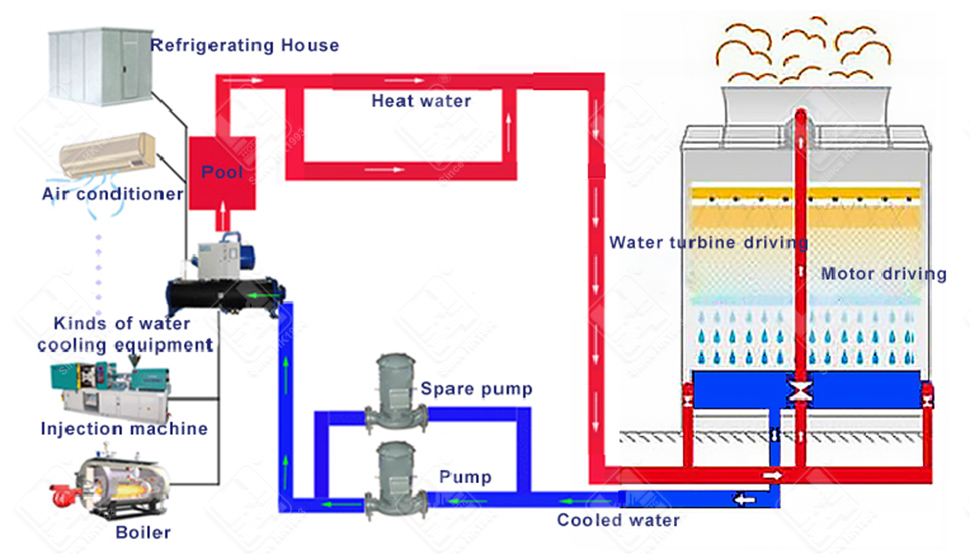

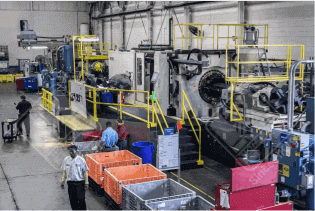

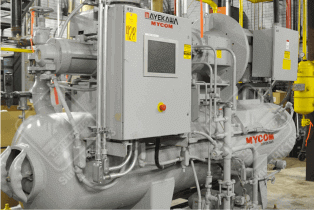

It is widely used in air conditioning system,frozen series,injection molding,plastic,leather, foam, power generation, food,textile,steam turbine, chemicals,packing industrial,aluminum processing, air compressors, industrial cooling water and other fields.

• Inlet temperature 37°C, outlet 32°C; temperature difference 5°C;
• Wet bulb temperature 28°C, and atmospheric pressure 99400Pa.
• Specifications and dimensions are subject to change without notice.

※Specifications are subject to change without notice.

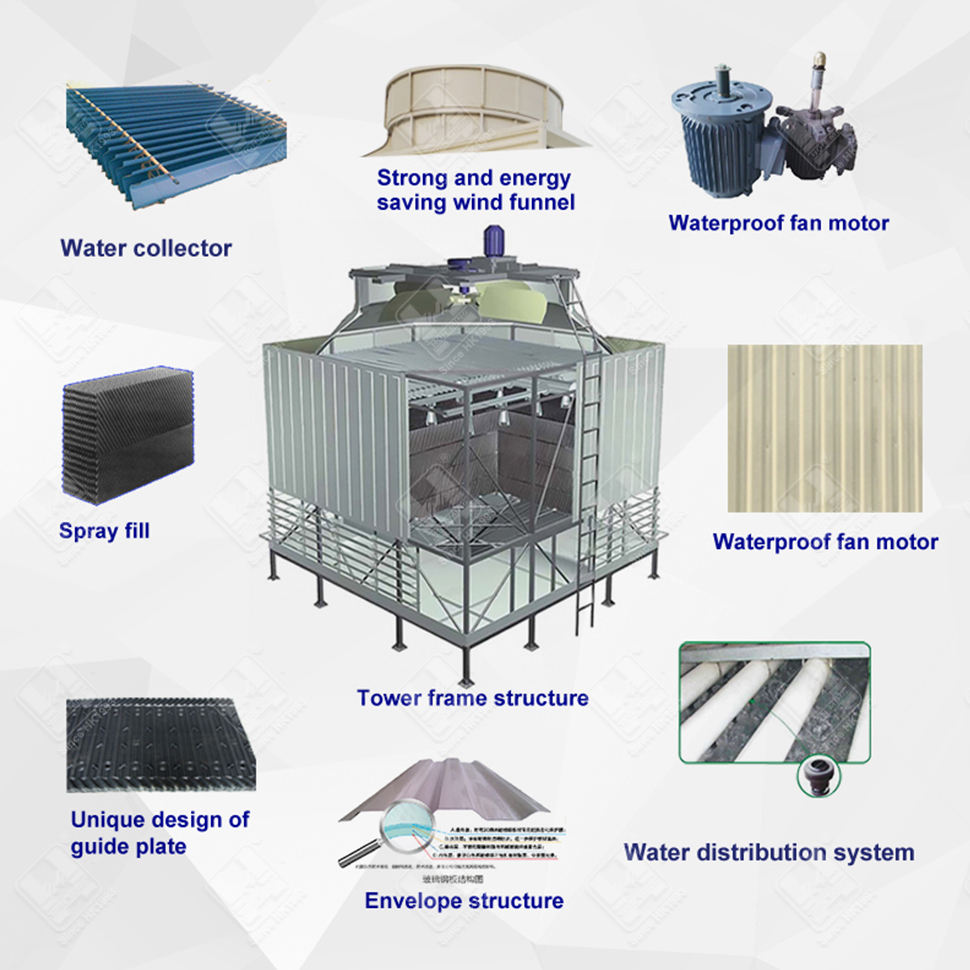

•  Tower frame

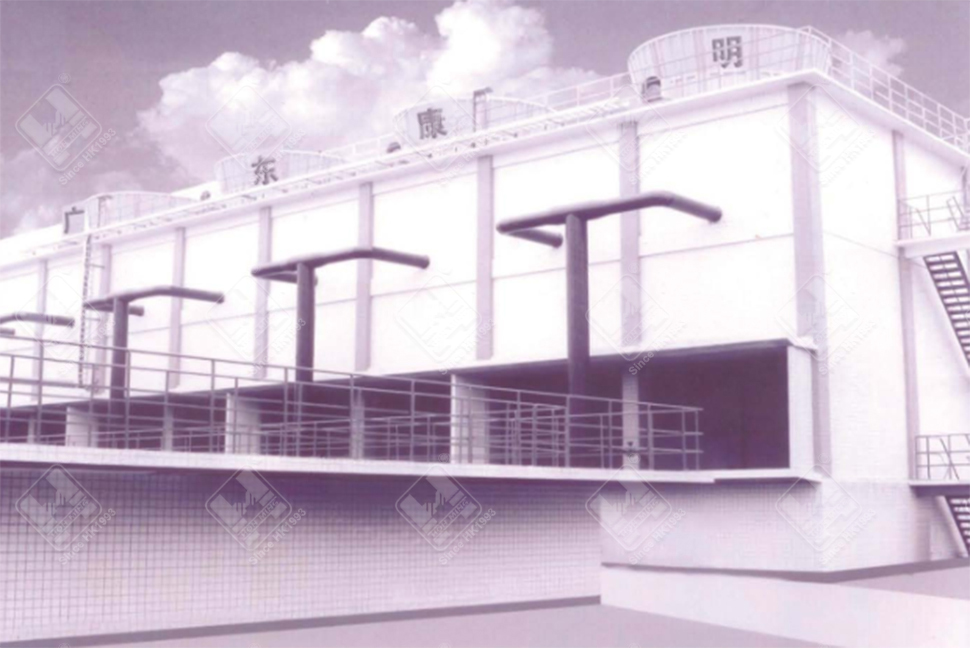

The reinforced concrete frame structure has the characteristics of Structure Stabilization, low vibration, strong corrosion resistance and long service life. It has the characteristics of strong corrosion resistance and long service life. The supporting and enclosing actinium structural parts adopt hot-dip galvanizing or other special anti-corrosion treatment.

• Enclosure structure

Adopt high-strength composite material, the surface is colored gel coat, and contains ultraviolet absorber. It has the advantages of smooth surface, corrosion resistance, UV resistance, anti-aging, and hard to fade. The color of the tower body can be selected according to the user.

• Transmission Structure

Adopts horizontal shaft transmission gear reducer, and the motor is outside the wind turbine. There is an oil mark outside the wind, which is easy to maintain. The motor, fan and reducer are all made by well-known professional manufacturers in China, and the standard configuration of the motor is single speed. According to customer requirements, we can also provide two-speed and three-speed motors, fans. The reducer also can be selected according to the customer’s designated manufacturer or we can on behalf of the customer to choose imported products.

• Water distribution system

The tubular water distribution system is equipped with internationally advanced gravity nozzles, which has many advantages such as low required pressure, uniform spraying, no clogging, and no hollow phenomenon.

• Water spraying filler

It is made of highly efficient modified PVC material. The sheet type has been tested by the authoritative department. It has the advantages of large specific surface area, small airflow resistance, good hydrophilicity, and large heat dissipation coefficient. At the same time, it has strong assembly and bonding, and is not easy to block or clean. Convenience, good flame retardant performance, aging resistance and other technological characteristics, temperature resistance -359C ~65C.

• Receiving water and guiding wind

Adopting the most advanced three dimensional partial peak water harvester in China, the water harvesting effect is obvious, and the floating water volume is less than 0.005%。The high-strength composite material kinetic energy recovery type wind turbine makes the cooling tower reasonable airflow organization and high efficiency. And it has the advantages of light, corrosion resistance, High kinetic energy recovery value High strength, large wind load (wind load z100kgf/m2) and also have other advantages

• Performance Guarantee

The design of MRGS series cooling strictly refers to the introduction of international advanced design concepts in No. CB7190.2- -2008. The model of the MRGS series cooling tower has passed the test in the comprehensive thermal performance test field established by “HonMing” in accordance with the American CTI standard.

The production of MRGS series cooling tower accessories is effectively controlled and fully guaranteed in the IS09001 quality assurance system and IS014001 environmental protection system.
