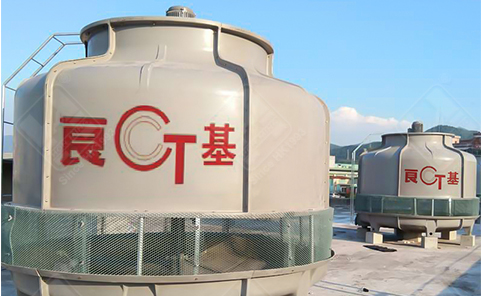

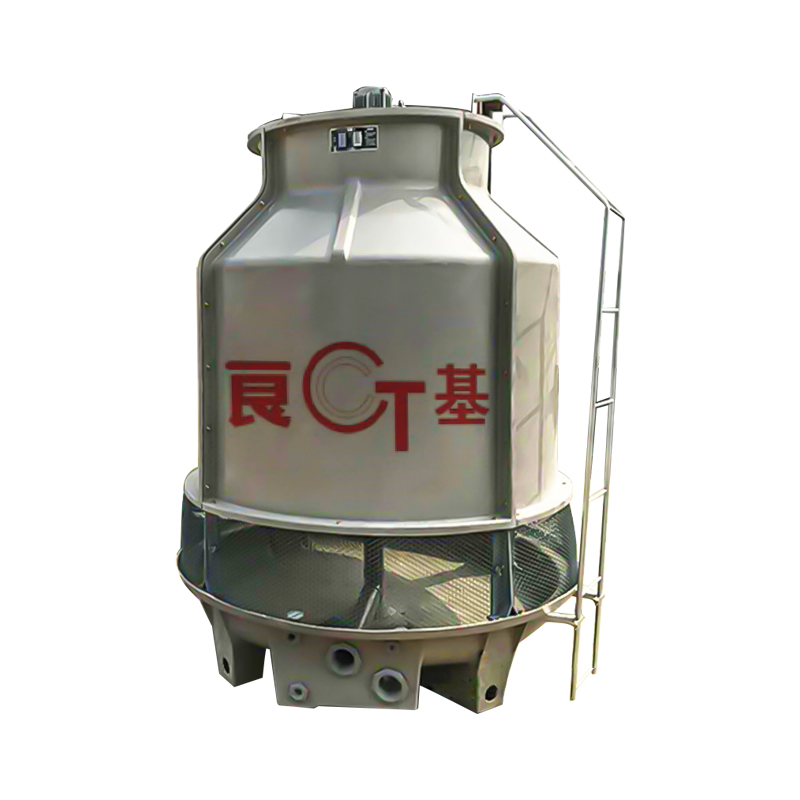

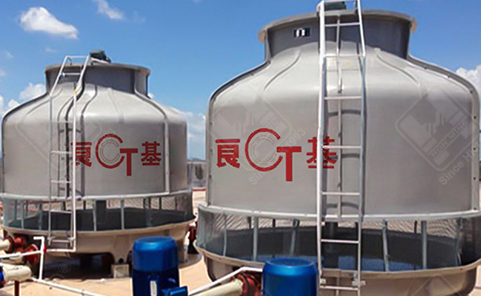

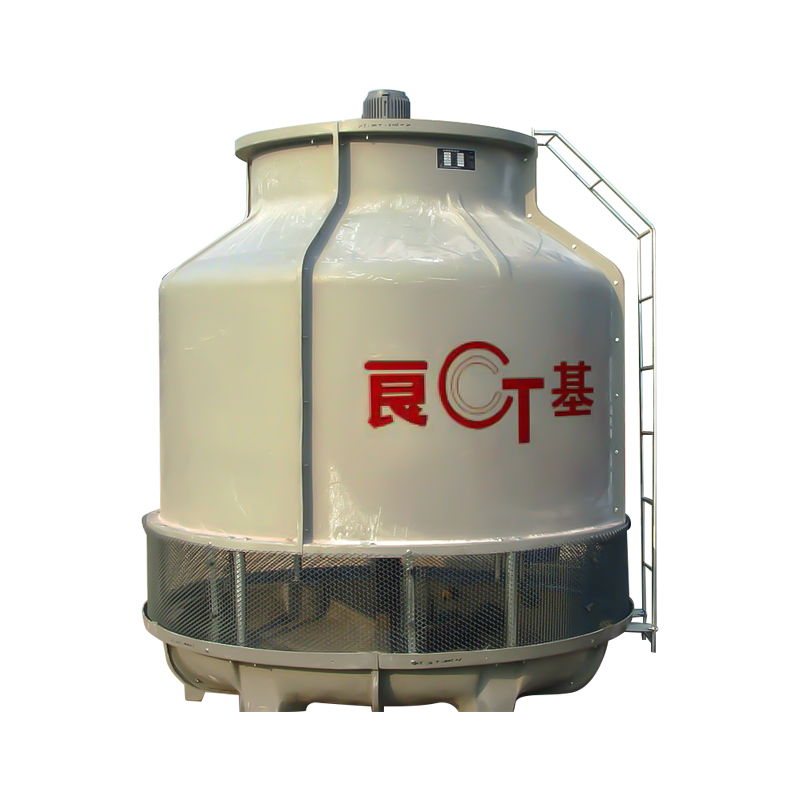

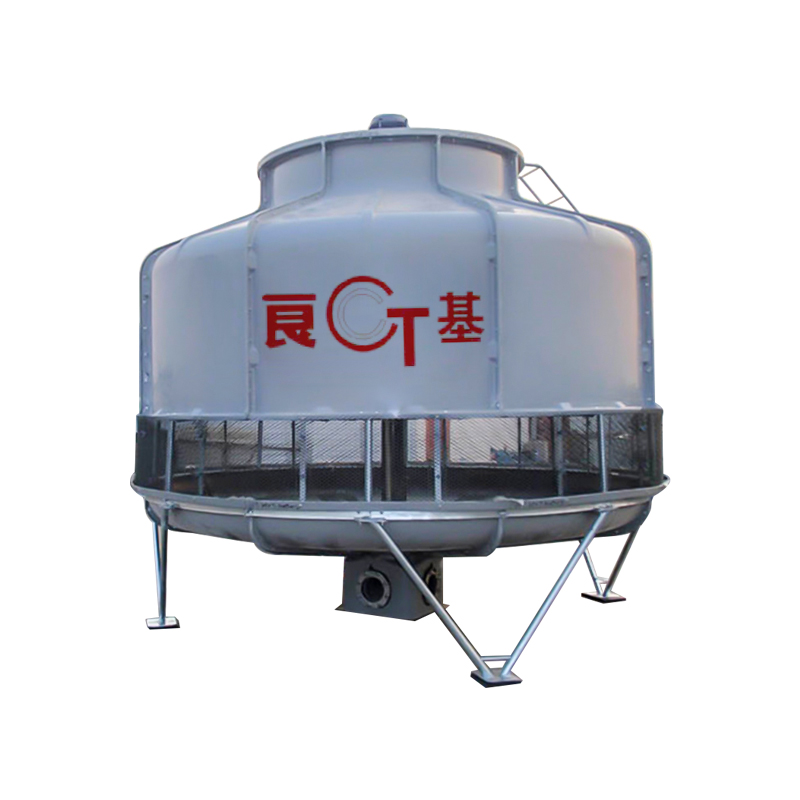

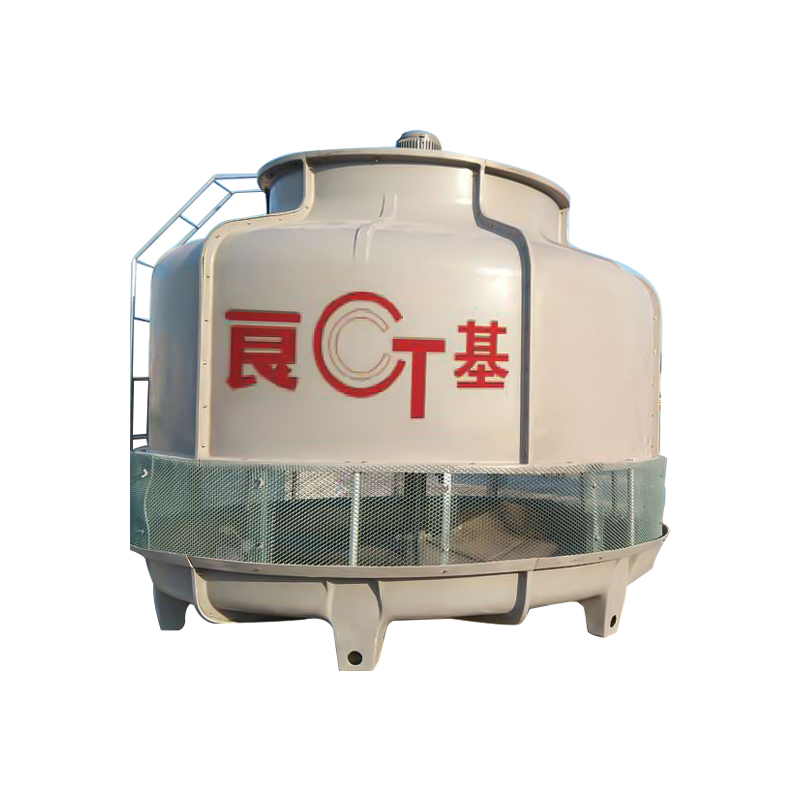

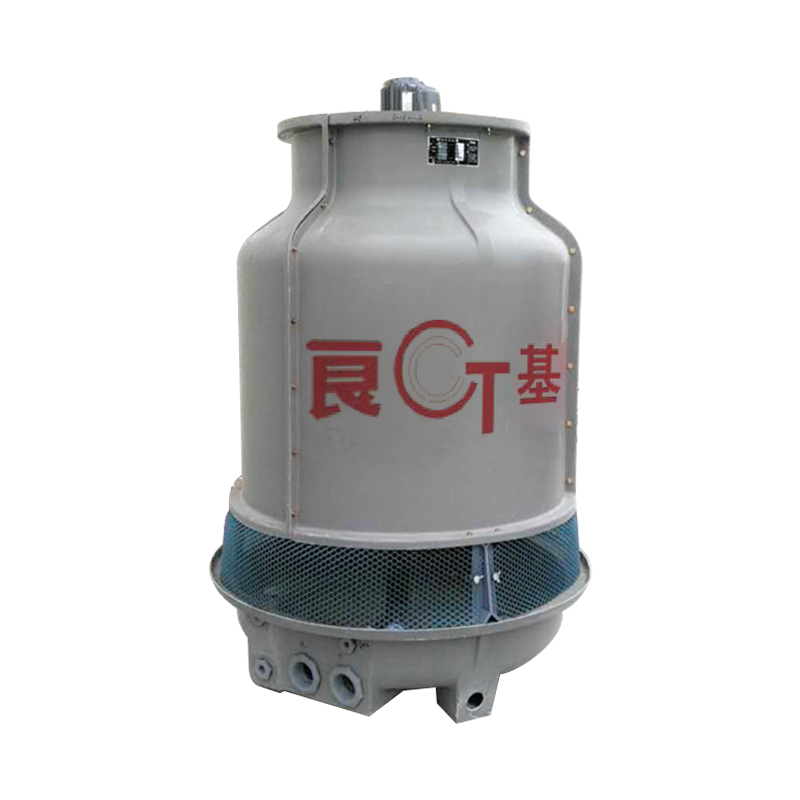

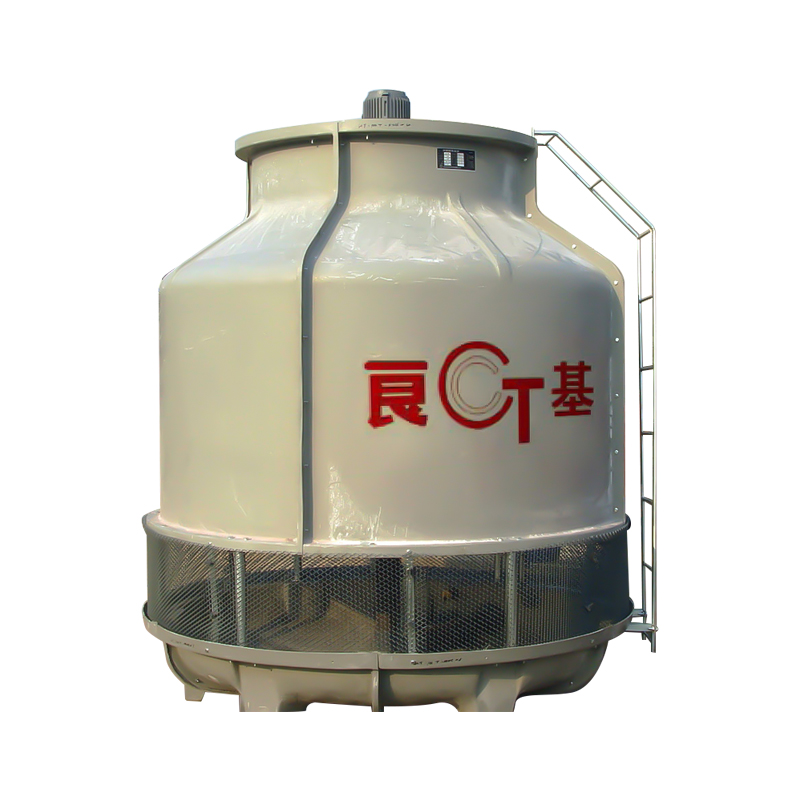

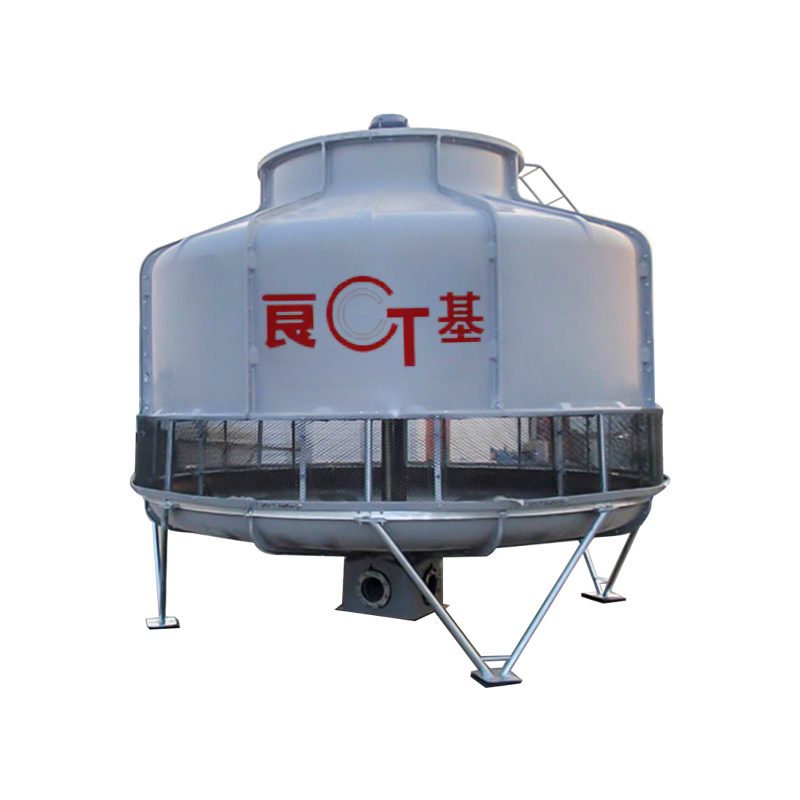

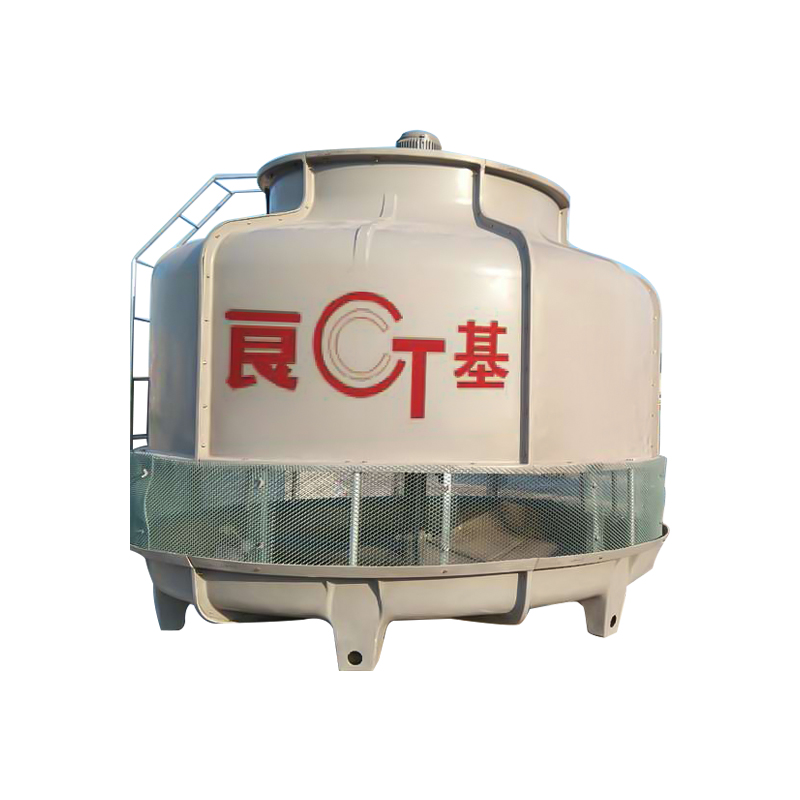

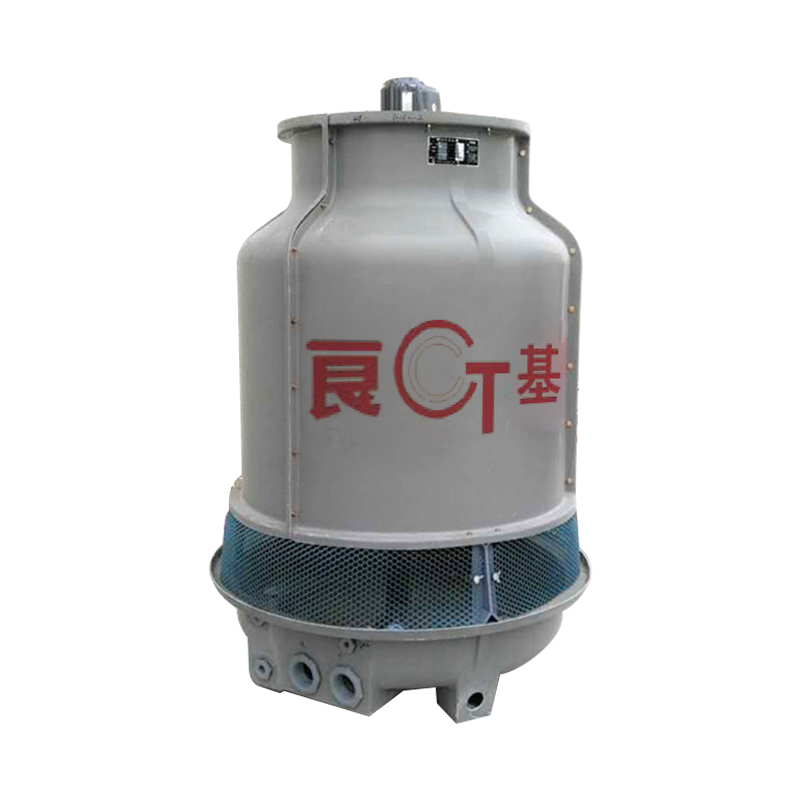

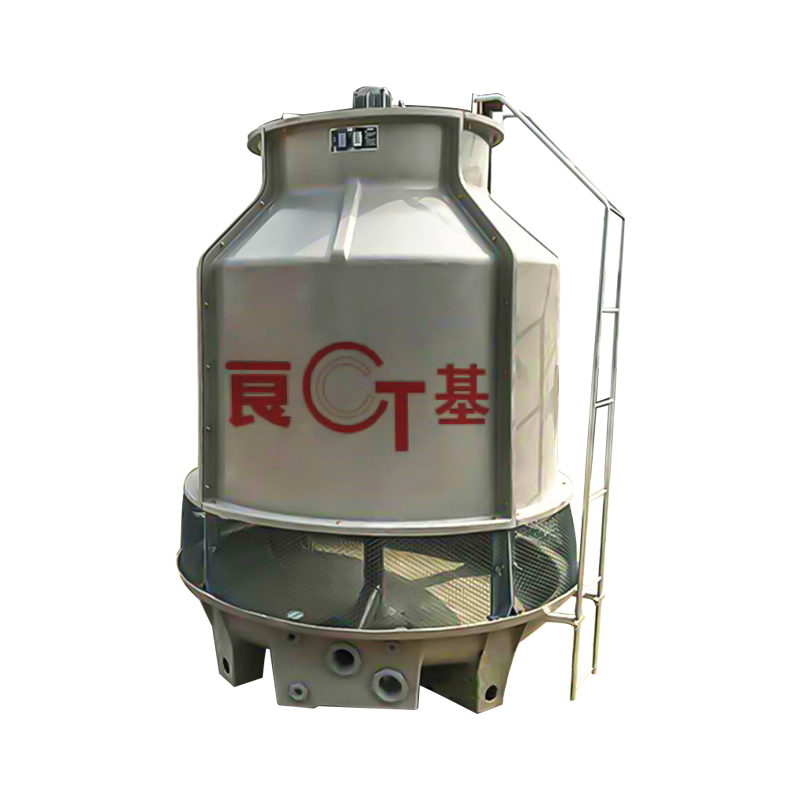

Low Price Round Cooling Tower

Round cooling tower is designed for power and water saving in industry.We adopt fibre-reinforced plastic with features of light, low noise and high quality as raw materials. Not only match with high quality pure copper motor but also improve product’s material selection and technology. It have more perfect users experience and good feedback.

For different requirement, we also can manufacture all kinds of cooling tower, and supply lots of design and installed capacity to meet the needs of different client special cooling tower requirements. Such as low noise, ultra-low noise or AI smart control cooling tower etc.

Cooling tower is mainly composed by motor,fan,sprinkler head,PVC filler,casing,basing and air intake louver.

JY series round cooling tower widely used in air-conditioning refrigeration systems, plastics, electroplating, electric power, chemical and other types of industrial machinery cooling system.

Round cooling tower,we can manufacture 3 types, one is standard cooling tower, one is industrial cooling tower, another is heat resistant cooling tower.
The standard cooling tower entering water temperature is 37°C.
The industrial cooling tower entering water temperature is 43°C
If entering water temperature higher than 43°C,we suggest you choose the heat resistant cooling tower which can afford 95°C.

• Inlet temperature 37°C, outlet 32°C; temperature difference 5°C;
• Wet bulb temperature 28°C, and atmospheric pressure 99400Pa.
• Specifications and dimensions are subject to change without notice.

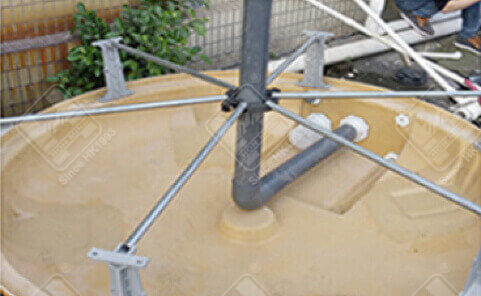

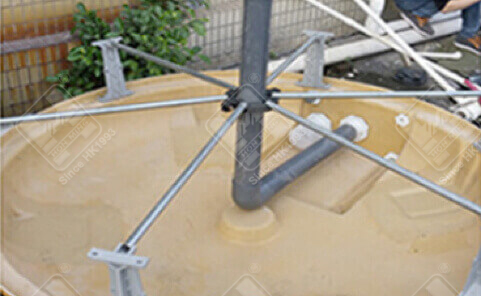

The rotating sprinkler system water evenly dispersed in the film. and then from the top of axial-flow fan will be dry air at the bottom of the belt, so that contact with hot water and air convection arising from evaporation，so that the water temperature down. At the end of the cooling water from the basin and collected by the heat pump operation to be recycled.

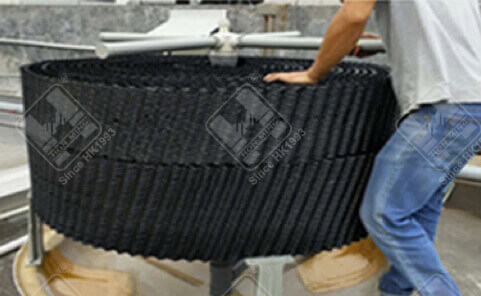

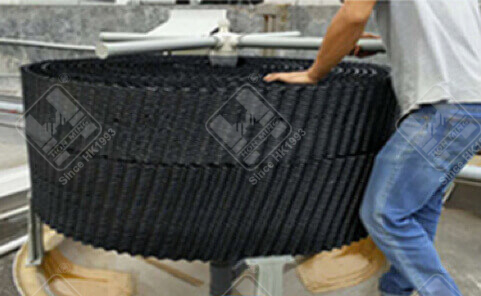

• Round cooling towers with high-quality PVC film,the peak nest-fan pattern significantly enhance the cold and hot swap capability,and can withstand the temperature reached 60C,cooling towers to ensure the best performance up to standard. Are equipped with high temperature-type tower supply,able to withstand 60-95C hot water, especially for electric power and other industries.

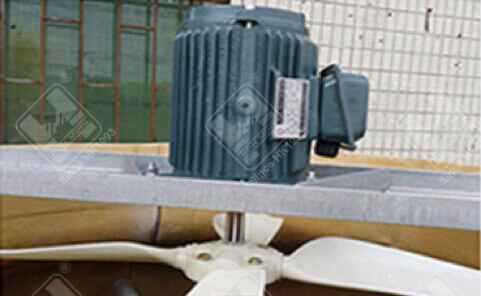

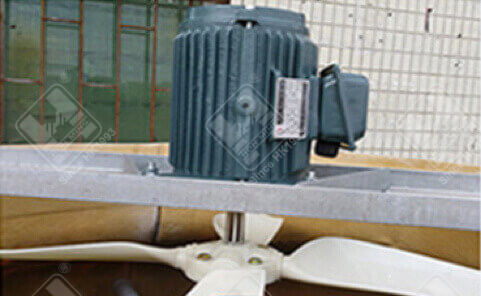

• Fan: axial flow fan, using advanced plastic, or aluminum alloy, each fan before delivery have to undergo a strict hand positioning and balance testing.
• All metal main parts: The thick steel production,by the international standards, hot-dip galvanized anti-rust treatment, at the same time provide a full stainless steel fittings.

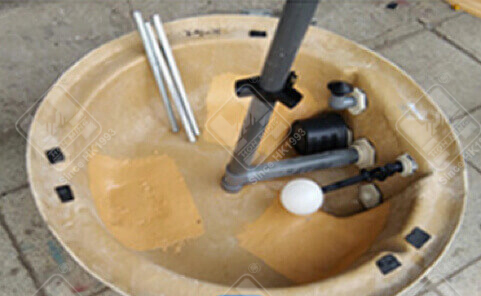

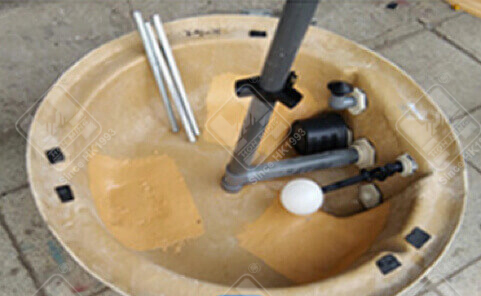

• Tower shell and chassis: both anti-acid erosion of the high alkali glass fiber reinforced plastic(FRP), all the pipes and sprinkler equipment, use of advanced plastic, not with oil to ensure durability. And equipped with light gray, sky blue and light yellow are available. (Sky-blue and light yellow please booking).

Selection and instructions

1.Before selection, you could provide cooling water consumption, entering water temperature, outlet water temperature, air wet bulb temperature.
2.You can run -50 ℃, The coldest average temperature below -10 ℃,  should tell us when you order, We will take ice prevention measures.
3.Circulating water turbidity is less than 50 mg/L, Can’t contain oil and impurities.
4.Entering water temperature less than 80℃.
5.In and out of the water pipe can be 90 °, 180°, 270° rotation direction.
6.The fan blade angle is adjustable and ensure the angle is consistent.
7.The motor can not more than rated current.
8.Fire prevention and press resistant.
